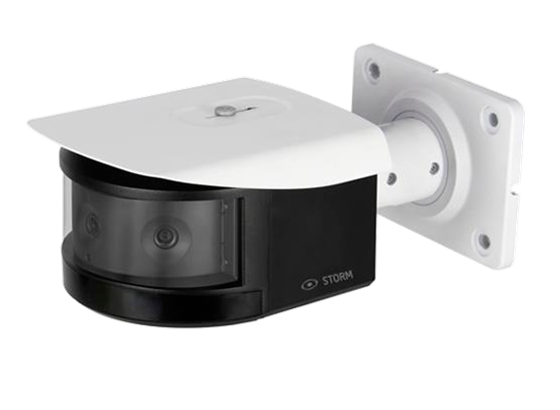

3x2MP (6MP) Network Multi-Lens IR Panoramic Bullet W/IR

Brand : STORM

UPC : 685225607267

PART # : INSBO6180IRF

The 3x2MP (6MP) H.265 Network Multi-Lens IR Panoramic Bullet Camera provides an expansive surveillance solution with three integrated 2MP STARVIS™ CMOS lenses, offering a total of 6MP resolution for panoramic monitoring. Equipped with dual-stream encoding in both H.265 and H.264, it efficiently manages bandwidth while ensuring high-quality imaging.

This camera is designed to capture clear detail in complex lighting environments, featuring 120dB Wide Dynamic Range (WDR) and IR illumination up to 30 meters for optimal visibility in low light. Advanced intelligent detection capabilities, such as intrusion, tripwire, and heatmap functions, enhance situational awareness, while support for up to 128 GB Micro SD card storage offers convenient on-board recording.

Image Sensor Three 1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels 4096(H) x 832(V)

RAM/ROM 1024MB / 128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1/3~1/100,000s

Minimum Illumination 0.007 Lux / F1.8 (Color, 1/3s, 30IRE); 0.05 Lux / F1.8 (Color, 1/30s, 30IRE); 0 Lux / F1.8 (IR on)

S/N Ratio More than 50dB

IR Distance Distance up to 30m (98ft)

IR LEDs 8

Day/Night Auto(ICR) / Color / B/W

Blacklight Compensation BLC / HLC / WDR(120dB)

Gain Control Auto/Manual

Noise Reduction 3D DNR

Privacy Masking 4 Areas

White Balance Auto / Natural / Street Lamp / Outdoor / Manual

Lens Type Fixed

Mount Type Board-in

Focal Length 3.6mm

Max. Aperture F1.8

Viewing Angle H: 180˚, V:44˚

Optical Zoom N/A

Focus Control Fixed

Pan/Tilt/Rotation Pan: 0˚~360˚; Tilt: 0˚~90˚; Rotation: 0˚~360˚

DORI Distance Detect: 52m (171ft); Observe: 21m (69ft); Recognize: 10m (33ft); Identify: 5m (16ft)

Video Compression H.265+ / H.265 / H.264+ / H.264

Resolution 4096×832 / 3840×780 / 2560×520 / 1280x260 / 1024X208

Frame Rate Main Stream: 4096x832 (1 to 25/30fps) Sub Stream: 1024x208 (1 to 25/30fps) Third Stream: 1280x260 (1 to 25/30fps)

Bit Rate H.265: 4Kbps ~ 10Mbps; H.264: 8Kbps ~ 16Mbps

Audio Compression G.711a / G.711Mu / AAC / G.726

Intelligent Functions Tripwire, Intrusion, Object Abandoned/Missing

Smart Features Heatmap, E-PTZ

Network Ethernet RJ-45 (100/1000Base-T)

Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Compatibility PSIA, CGI

Maximum User Access 10 Users/20 Users

Management Software STORM, STORM+, ARKIV

Edge Storage NAS; Micro SD card up to 128GB

Smart Phone iOS, Android

Video Interface 1 Port (For adjustment only)

Audio Interface 1/1 channel In/Out

RS485 N/A

Alarm 2 channel In: 5mA 5VDC 1 channel Out: 1A 30VCC / 0.5A 50VAC

Power Supply AC24V, PoE+ (802.3at)(Class 4)

Power Consumption Less than 23W

Working Environment -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection IP67

Vandal Protection IK10

Dimensions 298.3mm×172.5mm×120.5mm (11.74”×6.79”×4.74”)

Weight 7.52 lbs (3.41 kg)

INSX120 - Waterproof Junction Box

PART #: INSX120 View more

INSX150 - Pole mount Bracket

PART #: INSX150 View more

INSX151 - Corner Mount Bracket

PART #: INSX151 View more

Specifications Sheet

17-02-2022 — INSBO6180IRF 2MP H265 Dome Camera 2021.pdf
