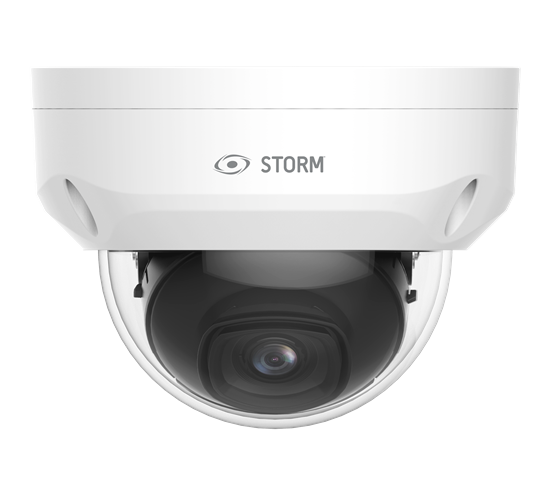

4.1MP Lite AI IR Network Dome Camera, Fixed 2.8mm

Brand : STORM

UPC : 685225605928

PART # : INSDO4IRF

The 4.1MP H.265+ Dome Camera with SD slot delivers high-performance surveillance with its 4MP, 1/3” CMOS image sensor, providing clear and detailed images even in low-light conditions. It outputs a maximum resolution of 2688 × 1520 at 30 fps, ensuring superior video quality.

Utilizing the H.265 codec, this camera achieves a high compression rate and ultra-low bit rate, optimizing storage and bandwidth efficiency. Equipped with a built-in IR LED, it offers a maximum illumination distance of 50 meters, ensuring effective night vision. The camera also features intelligent detection capabilities, including intrusion and tripwire detection, with support for accurate classification and detection of vehicles and humans.

Designed for robust security applications, this dome camera combines advanced imaging technology, efficient compression, and intelligent detection, making it an ideal choice for comprehensive surveillance needs.

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 512MB/128MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.005 Lux at F1.6 (Color, 30IRE); 0.0005 Lux at F1.6 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 50 m (164.0 ft)

IR LEDs 3

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR 120dB

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Smart Illumination Yes

Privacy Masking 4 Areas

Lens Type Fixed Lens

Mount Type M12

Focal Length 2.8mm

Max. Aperture F1.6

Viewing Angle Horizontal: 103.0°; Vertical: 55.0°; Diagonal: 122.0°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–65°; D: 0°–355°

DORI Distance Detect: 56.0 m (183.7ft); Observe: 22.4 m (73.5 ft); Recognize: 11.2 m (36.8 ft); Identify: 5.6 m (18.4 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps; Sub stream: 704 × 576 (1 fps to 25 fps) 704 × 480 (1 fps to 30 fps); Third stream: 1280 × 720 at 1 to 25/30 fps

Bit Rate H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps

Area Protector Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search Use STORM Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Alarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection;scene changing; intensity change; tripwire; intrusion; Smart Motion Detection

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Storage FTP; SFTP; NAS; Micro SD Card up to 256 GB

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Compatibility CGI; P2P; Milestone; Genetec

Maximum User Access 20

Smart Phone iOS, Android

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 7.3W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67, IK10

Dimensions 81 mm × Φ109.9 mm (3.2” × Φ4.3”)

Weight 1.15 lbs (0.52 kg)

INSX136 - Junction box

PART #: INSX136 View more

INSX203 - Water proof wall mount Bracket

PART #: INSX203 View more

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INS200W - Camera Rain cover

PART #: INSX200W View more

INSX106 - Mount Adapter

PART #: INSX106 View more

Ceiling Mount Bracket of Mini Dome & Eyeball Camera

PART #: INSX220C View more

Specifications Sheet

18-08-2021 — INSDO4IRF H265 Dome Camera with SD Slot 2021.pdf
