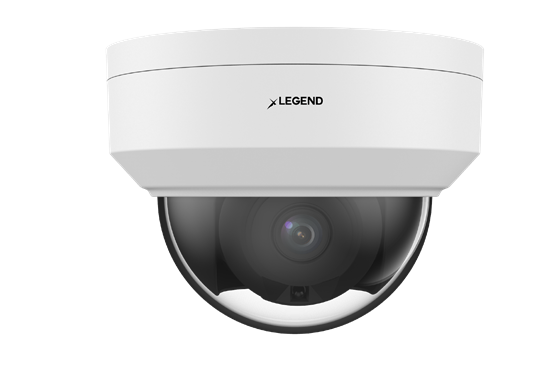

4.1 MP Vandal Proof Fixed Dome Network Camera w/IR, Audio IN/OUT, 2.8mm

Brand : LEGEND

UPC : 685225603757

PART # : INLGDO4IRWF

Legend: Smarter, Stronger, Fully NDAA Compliant

The INLGDO4IRWF is a 4.1MP vandal-proof fixed dome camera equipped with a 1/3” CMOS sensor, 120dB True WDR, and Smart IR for clear imaging in day or night conditions. It supports efficient H.265+/H.264 video compression and includes a Micro SD slot for up to 256GB of local storage. The IP67-rated housing ensures reliable protection against water and dust.

Advanced Compression Standards

Supports advanced video compression standards including Ultra 265, H.265, H.264, and MJPEG, enabling more efficient video storage and streaming.

Wide Dynamic Range

This camera offers excellent image quality in challenging lighting conditions with its 120dB true WDR technology.

2D/3D DNR Technology

Uses an anti-reflective window for enhanced infrared transmittance and utilizes advanced 2D/3D DNR technology for superior digital noise reduction.

Multiple Features

This vandal-resistant camera offers surge protection up to 2KV and IP67 ingress protection, making it ideal for outdoor installations in harsh weather conditions. Additionally, it has an IK10 rating, which indicates high resistance to impact and vandalism.

Image Sensor 1/3”, 4 megapixel, progressive scan, CMOS

Minimum Illumination Color: 0.01 Lux (F2.0, AGC On); 0 Lux with IR on

S/N Ratio More than 52dB

IR Distance Distance up to 30m (98ft)

Wavelength 850nm

IR On/Off Control Auto/Manual

Day/Night IR-cut filter with auto switch (ICR)

Wide Dynamic Range 120dB

Noise Reduction 2D/3D DNR

Features HLC; BLC

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1~1/100,000 s

Privacy Mask Up to 4 areas

On-Screen Display (OSD) Up to 4 OSDs

Region of Interest Up to 8 areas

Lens Type Fixed

Focal Length 2.8mm

Viewing Angle H: 97.0°; V: 52.2°; D: 107.5°

Pan/Tilt/Rotate Pan: 3° ~ 360°; Tilt: 0 ~ 68°; Rotate: 3° ~ 360°

DORI Distance Detect: 63.0m; Observe: 25.2m; Recognize: 12.6m; Identify: 6.3m

Compression H.265+, H.265, H.264, MJPEG

H.264 code profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps // Sub Stream: D1 (720x576), Max 30fps; 640x360,Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps;

Video Bit Rate 128 Kbps~6144 kbps

Edge Storage Micro SD card, up to 128GB

Network Storage ANR, NAS(NFS)

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP

Compatibility ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host Up to 32 users. 2 user levels: administrator and common user

Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Management Software LEGEND VMS, Arkiv, 3rd Party

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above // Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Basic Detection Cross Line detection, Intrusion detection, Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function Watermark, IP address filtering, Access Policy, ARP protection, RTSP authentication, User authentication

EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)

Safety CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)

Protection IP67 (IEC 60529:1989 + AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) 4KV (Surge Protection)

Power Supply DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption Less than 4W

Working Environment -30°C to 60°C (-31°F to 140°F) / Less than 95% RH

Power Interface Ø 5.5mm coaxial power plug

Weight 0.36kg (0.79lb)

Dimensions Φ109 x 81mm (Ø4.3” x 3.2”)
