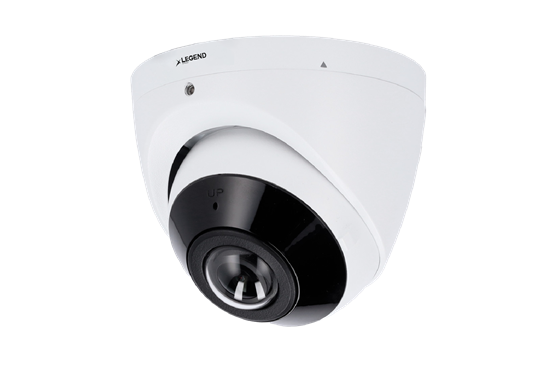

5MP HD Wide Angle Intelligent IR Fixed Turret Network Camera

Brand : LEGEND

UPC : 685225506645

PART # : INLGTO5IR180WF

Delivering a high-quality image through its 5MP 1/2.7" CMOS sensor. Equipped with True WDR technology boasting a dynamic range of 120 dB, this camera excels in challenging lighting conditions, ensuring optimal image quality. With efficient H.265+ and H.264 encoding, users can maximize storage utilization. The camera's dewarp level is customizable within the range of 1-9, influencing the curve and warp at the edge of the view. Moreover, Wide Angle technology provides a horizontal viewing angle of 180°, and the camera features smart intrusion prevention functionalities, including cross line detection and intrusion alerts, offering comprehensive security solutions.

Image Sensor 1/2.7”, 5.0 megapixel, progressive scan, CMOS

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1 ~ 1/100,000s

Minimum Illumination Colour: 0.01lux (F2.0, AGC ON) 0 lux with IR on

S/N Ratio More than 56dB

IR Distance Distance up to 20m (66ft)

Wavelength 850nm

Wide Dynamic Range 120dB

IR On/Off Control Auto/Manual

Backlight Compensation Supported

White Balance Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2

Digital Noise Reduction 2D/3D DNR

Dewarping Supported

Privacy Masking Up to 4 areas

OSD Up to 8 OSDs

Flip Normal / Vertical / Horizontal / 180°

HLC Supported

Defog Digital Defog

Smart IR Supported

ROI Up to 8 areas

Focal Length 1.68mm

Adjustment Angle Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotate: 0° ~ 360°

Field of View H: 180°; V: 100°; O: 180°

Day/Night IR-cut filter with auto switch (ICR)

DORI Distance - 1.68mm Detect: 37.8m(124.0ft); Observe: 15.1m(49.6ft); Recognize: 7.6m(24.8ft); Identify: 3.8m(12.4ft)

Compression H.265+ / H.265 / H.264 / MJPEG

Lens Type Fixed

Bit Rate 128 Kbps ~ 10 Mbps

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Protocol IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

User/Host Up to 32 users. 3 user levels: administrator, common user and operator

Compression H.265+ / H.265 / H.264 / MJPEG

Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF

Frame Rate Main Stream: 5MP (2880x1620), Max 30fps; 4MP (2560x1440), Max 30fps; 1080P (1920x1080), Max 30fps 4MP(2560x1440) Max 25fps; 3MP(2304x1296) Max 30fps; 1080P (1920x1080), Max 30fps; 720P(1280x720) Max 30fps // Sub Stream: 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps // Third Stream: D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF (704x288), Max 30fps; CIF (352x288), Max 30fps

Management Software LEGEND VMS, Arkiv

Built-in Microphone Supported

Ethernet 1 RJ45 10M/100M Base-TX Ethernet

Audio Compression G.711U, G.711A

Protocol IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Audio bitrate 64 Kbps

Edge Storage Micro SD slot, up to 256 GB

Network Storage ANR, NAS(NFS)

Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above / Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Smart intrusion prevention Intrusion detection, Enter Area detection, Leave Area detection, Line Crossing

General Function ARP protection, RTSP authentication, user authentication

Audio Compression G.711U, G.711A

Power Supply DC 12V±25%, PoE (IEEE 802.3af )

Power Consumption Less than 5.5W

Suppression Support

Working Environment -30° C to +60° (-22°F ~ 140°F) / Less than 95% RH (non-condensing)

Sampling Rate 8KHZ

Ingress & Vandal Protection IP67 & IK10

Weight 0.48kg (1.06lb)

Dimensions 111 x 93mm (4.4”x 3.7”)

Certifications EMC: CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B); Safety: CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1); Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Protection: IP67 (IEC 60529) IK10 (IEC 62262)
