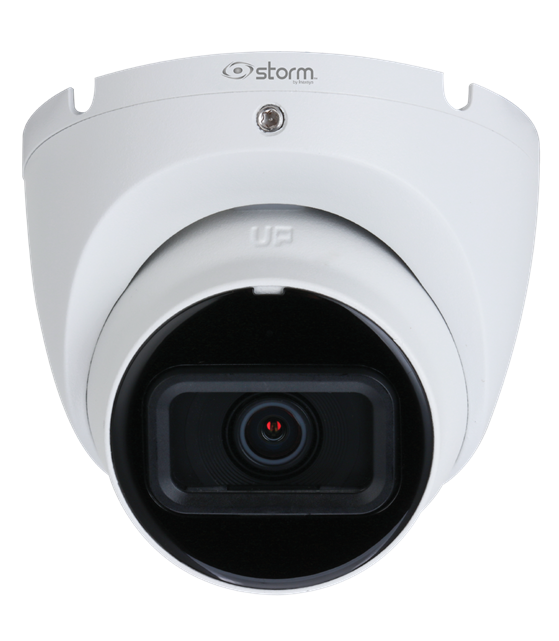

4MP Entry IR Fixed-focal TURRET Network Camera

Brand : STORM

UPC : 685225102892

PART # : INSTO4IRF

The 4MP Entry IR Fixed Turret Network Camera is engineered for high-performance surveillance with a 4MP 1/3” CMOS image sensor that excels in low-light conditions. It delivers a maximum resolution of 2688 × 1520 at 30 fps, providing clear and detailed video footage.

Featuring H.265 codec technology, this camera ensures high compression rates and ultra-low bit rates, making it efficient in storage usage while maintaining superior image quality. The built-in IR LED extends up to 30 meters, allowing for effective night-time monitoring.

Equipped with advanced abnormality detection functions such as motion detection, video tampering, network disconnection, IP conflict, and illegal access, this camera enhances security and monitoring capabilities, making it a reliable choice for comprehensive surveillance needs.

Image Sensor 1/3” 4Megapixel progressive CMOS

Effective Pixels 2688 (H) ×1520 (V)

RAM/ROM 16MB/64MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s

Minimum Illumination 0.03 Lux at F2.0 (Color, 30IRE); 0.003 Lux at F2.0 (B/W, 30IRE) 0 Lux (Illuminator on)

S/N Ratio More than 56 dB

IR Distance 30 m (98.43 ft)

IR LEDs 1

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / DWDR

White Balance Auto / natural / street lamp / outdoor / manual / regional custom

Gain Control Auto/Manual

Noise Reduction 3D DNR

Motion Detection OFF/ON (4 areas, rectangular)

Region of Interest Yes (4 areas)

Image Rotation 0°/180° (0° by default)

Smart Illumination Yes

Privacy Masking 4 Areas

Mirror Yes

Lens Type Fixed-flocal

Mount Type M12

Focal Length 2.8 mm

Max. Aperture F2.0

Viewing Angle Horizontal: 90°; Vertical: 50°; Diagonal: 107°

Pan/Tilt/Rotation Pan: 0°–355°; Tilt: 0°–78°; Rotation: 0°–355°

DORI Distance Detect: 68.0 m (223.1 ft); Observe: 27.2 m (89.2 ft); Recognize: 13.6 m (44.6 ft); Identify: 6.8 m (22.3 ft)

Compression H.265+; H.264+; MJPEG (only supported on the sub stream)

Resolution 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Frame Rate Main Stream: 2688 × 1520 at 1 to 25/30 fps; Sub stream: 704 × 576 (1 fps to 25 fps); 704 × 480 (1 fps to 30 fps)

Bit Rate H.264: 32 Kbps–4096 Kbps; H.265: 12 Kbps–4096 Kbps

Certifications CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B

Alarm Event IP conflict; illegal access; motion detection; video tampering; security exception; network disconnection

Cyber Security Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and im- porting of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution

Ethernet RJ-45 (10/100 Base-T)

SDK & API Yes

Storage FTP

Management Software STORM, STORM+, ARKIV

Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast

Compatibility ONVIF (Profile S/ Profile T); CGI; P2P

Maximum User Access 6

Smart Phone iOS, Android

Browser Chrome; Firefox; Internet Explorer

Power Supply 12V DC/PoE (802.3af)

Power Consumption Less than 4.7W

Working Environment -40°C to +60°C (-40°F to +140°F); Less than 95% RH

Protection IP67

Material Metal

Dimensions 85.6 mm × Φ94.0 mm (3.37” × Φ3.70”)

Weight 0.71 lbs (0.32 kg)

Specifications Sheet

29-05-2023 — INSTO4IRF 4MP Entry IR Fixed Turret Network Camera.pdf
