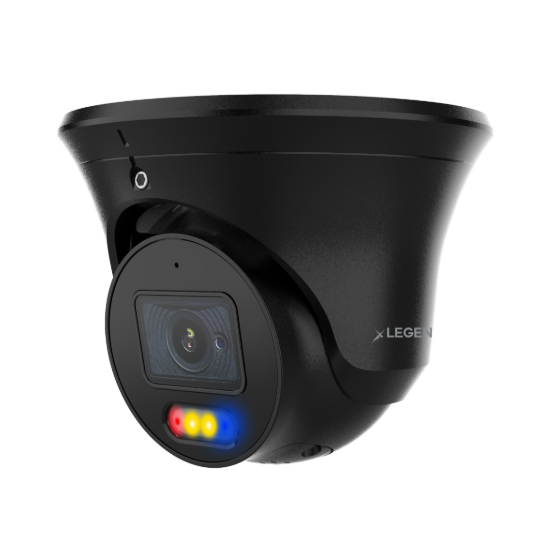

5.1 MP Intelligent Dual Light Fixed Lens Black Turret Network Camera

Brand : LegendNX

UPC : 685225308874

PART # : LGNXTO5DIWFB

High-definition imaging with an 5.1 MP resolution
Classification of human and vehicle targets through intelligent analysis
Active red and blue lighting for visual deterrence
IR illumination and warm light up to 30 m
IP67 protection rating against water and dust
Built-in microphone

Image Sensor 1/2.7” Progressive Scan CMOS

Minimum Illumination Color: 0.006 Lux (F1.6, AGC on), 0 Lux with light

Illumination Distance IR & Warm light: up to 30 m

Smart IR Supported

Strobe Light N/A

Pan / Tilt / Rotation 0° to 360° / 0° to 75° / 0° to 360°

Focal Length 2.8 mm

Aperture F1.6

Field of View HORIZONTAL: 110° / VERTICAL: 58° / DIAGONAL: 128°

Mount M12

Video Compression H.264 / H.264+ / H.265 / H.265+ / MJPEG (sub stream)

H.265 Codec Profile Main

H.264 Codec Profile Base / Main / High

Video Bit Rate 11 Kbps to 13 Mbps

Multiple Streams Triple streams

Audio Compression G.711A, G.711U

Audio Bit Rate 64 Kbps

Maximum Resolution 5MP (2960 × 1664)

Main Stream 50Hz: 20 fps 5MP (2960 × 1664); 25 fps 4MP (2688 × 1520); 25 fps 4MP (2560 × 1440); 25 fps 1080P (1920 × 1080) // 60Hz: 20 fps 5MP (2960 × 1664); 30 fps 4MP (2688 × 1520); 30 fps 4MP (2560 × 1440); 30 fps 1080P (1920 × 1080)

Sub Stream 50Hz: 25 fps 720P (1280 × 720) ; 25 fps D1 (704 × 576) ; 25 fps CIF (352 × 288) // 60Hz: 30 fps 720P (1280 × 720) ; 30 fps D1 (704 × 480) ; 30 fps CIF (352 × 240)

Third Stream 50Hz: 25 fps CIF (352 × 288) // 60Hz: 30 fps CIF (352 × 240)

Parameters Brightness / Contrast / Saturation / Hue / Sharpness

Shutter Auto / Manual, 1/3 to 1/100000 s

Day / Night IR Cut Filter

WDR 120 dB

Noise Reduction 2D / 3D DNR

Back Light Compensation (BLC) Supported

High Light Compensation (HLC) Supported

Region of Interest (ROI) Supported

Rotation Supported

Basic Events Motion detection, video tampering

Smart Events Smart motion detection, line crossing, area intrusion, region entrance/exiting with human/vehicle filtering

Face Detection N/A

Storage NAS (NFS, SMB/CIFS)

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

Compatibility ONVIF (Profile S, G, T), SDK

Security User authentication, IP filtering, video masking

Users 40

Browsers IE10, IE11 ; Chrome 57+ ; Firefox 52+ ; Safari

Mobile iOS, Android

Red/Blue Light Supported

Sound Warning N/A

Network 1 × RJ45 10/100 Mbps

On-board Storage Up to 256 GB

Microphone Supported

Speaker N/A

Audio Input / Output N/A

Alarm Input / Output N/A

Reset Button Supported

Operating Conditions -30 °C to 60 °C

Humidity ≤ 95% non-condensing

Power Supply DC12V ± 25%

PoE 802.3af

Power Consumption Maximum 6 W

Protection IP67

Material Metal

Dimensions Φ103.5 × 82.4 mm

Weight 450 g

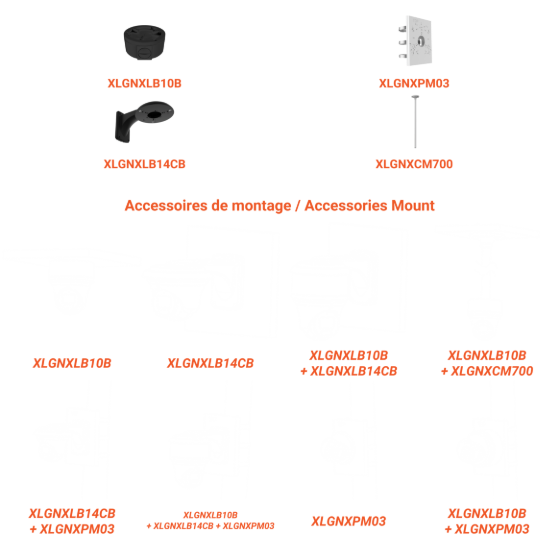

XLGNXLB10B - Black Junction box

PART #: XLGNXLB10B View more

XLGNXPM03 - Pole Mount

PART #: XLGNXPM03 View more

XLGNXLB14CB - Wall Mount

PART #: XLGNXLB14CB View more

XLGNXCM700 - Pendant Mount Bracket

PART #: XLGNXCM700 View more

Specifications Sheet

26-01-2026 — LGNXTO5DIWF - LGNXTO5DIWFB - 5.1 MP Intelligent Dual Light Fixed Lens Turret Network Camera.pdf
