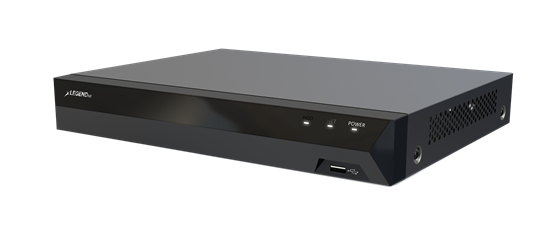

8-Channel 4K Universal Video Recorder

Brand : LegendNX

UPC : 685225309079

PART # : LGNX814KUVR

This UVR device supports HDCVI, AHD, TVI, and IP video inputs, offering up to 16 channels of IP camera input with 4K resolution. It features line crossing and intrusion detection on up to 8 channels, audio over coaxial for all channels, and double-stream recording, with 4/1 audio and alarm inputs/outputs and a 160Mbps bandwidth.

Supports HDCVI/AHD/TVI/IP video inputs
Maximum 8 channels Line crossing & Intrusion Detection
Audio In/Out: 4/1, Alarm In/Out: 4/1
Bandwidth : 160Mbps
All channels Audio over coaxial
Maximum 16 channels IP Camera input, up to 4K
Double Stream Recording

Ordering Information		Storage Capacity
LGNX814UVR2T		2 TB
LGNX814UVR4T		4 TB
LGNX814UVR6T		6 TB
LGNX814UVR8T		8 TB
LGNX814UVR10T		10 TB

Analog Video Input 8-Channels (1.0Vp-p, 75 Ω)

HDTVI Input 8MP / 5MP / 4MP / 1080P / 720P

CVI Input 8MP / 4MP / 1080P / 720P

AHD Input 8MP / 5MP / 4MP / 1080P / 720P

CVBS Input Supported

IP Video Input Up to 16-Channels, Resolution up to 8MP

Audio Input 4-Channels, RCA (2.0Vp-p, 1KΩ)

Two-Way Audio 1-Channel, multiplex with Audio Input (RCA)

HDMI 1-Channel, Resolution: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA 1-Channel, Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS 1-Channel, BNC (1.0Vp-p,75Ω), Resolution: PAL: 704 x 576, NTSC: 704 x 480

Audio Output 1-Channel, RCA (Linear, 1kΩ)

Video Compression H.265+ / H.265 / H.264+ / H.264

Encoding Resolution 8MP / 5MP / 4MP / 1080P / 1080P Lite / 720P / 960H / D1

Resolution Main stream 8MP @ 7fps, 8MP-N @ 15fps, 5MP @ 12fps, 4MP @ 15fps, 1080P/720P/960H/D1 @ 25fps (P) /30fps (N)

Frame Rate PAL: 1-25fps NTSC : 30fps

Video Bit Rate 11Kbps ~ 6769Kbps

Recording Mode Manual, Schedule, Alarm

Audio Bit Rate 64kbps

Playback Number 4-Channels: 8MP Playback 8-Channels: 8MP-N Playback

Playback Mode Smart Playback: Enhanced playback with advanced search features, such as motion or object detection for faster review

Normal Playback Standard, continuous playback of recorded footage

Segmented Playback Splits recorded footage into time segments for easier navigation

Tagged Playback Allows playback of video segments that have been labeled or tagged for easy access

Event Playback Focuses playback on recorded events like motion detection or alarms

Picture Playback View recorded footage in still image format for detailed inspection

Backup Mode USB Device / Network

Smart Detection Analog Analog 8-Channels: line crossing detection, intrusion detection

Smart Detection IP Camera IP Camera Line crossing detection / Area intrusion detection

Smart Playback Analog Line crossing / Area Intrusion / Motion Detection

Smart Playback IP Camera Line crossing / Area Intrusion / Motion Detection

Cloud Storage Support

Cloud Upgrade Support

Ethernet 1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

SATA 1 SATA Interface Capacity Up to 8TB for each HDD

Serial Interface 1*Standard RS-485 (half-duplex)

USB Interface Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0

Alarm In 4-Channels

Alarm Out 1-Channels

Power Supply DC12V, 2A; Power Consumption ≤10W (without HDD)

Working Environment 14°F ~ 131°F (-10°C ~ 55°C), Humidity 10% to 90%

Weight 4.6 lb / 2.1Kg

Specifications Sheet

20-03-2025 — LGNX814KUVR - 8CH 4K UNIVERSAL DVR NO HDD.pdf
