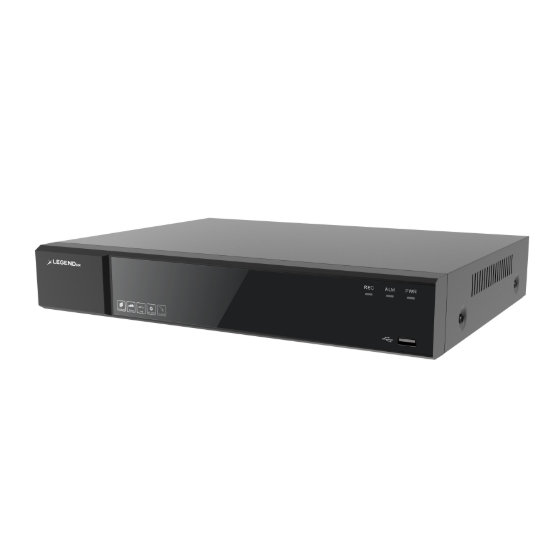

16-Channel 4K NVR with 16-Port PoE

Brand : LegendNX

UPC : 685225308805

PART # : LGNX16164KN

16-channel IP video input, up to 12 MP
Video compression: H.265+/H.265/H.264+/H.264
Incoming / outgoing bandwidth: 16 Mbps / 80 Mbps
Simultaneous HDMI and VGA outputs
16 independent PoE network interfaces
Camera-based intelligent functions (human/vehicle detection, perimeter protection, face recognition, etc.)

Ordering Informations

LGNX16164KN2T - 2 To
LGNX16164KN4T - 4 To
LGNX16164KN6T - 6 To
LGNX16164KN8T- 8 To
LGNX16164KN10T - 10 To
LGNX16164KN12T - 12 To
LGNX16164KN16T - 16 To
LGNX16164KN20T - 20 To

Raid N/A

Hot swap N/A

IP Video Input 16-ch

Audio Input 1-Channel, RCA

HDMI 1-ch: 3840 × 2160 / 30 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

VGA 1-ch: 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

Audio Output 1-ch, RCA

Compression H.265+/ H.265/ H.264+/ H.264

Resolution 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Bit Rate 64 Kbps to 10 Mbps

Playback Resolution 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Decoding 1-ch @ 12MP / 20 fps 2-ch @ 8MP / 30 fps 3-ch @ 5MP / 30 fps 4-ch @ 4MP / 30 fps 8-ch @ 1080P / 30 fps 16-ch @ 720P / 30 fps

Synchronous Playback 16-ch

Playback Mode Smart / Normal / Time Division / Label / Event

Backup Mode USB Device / Network

Smart Detection Area intrusion, line crossing, region entrance/region exiting, fast moving, object missing, unattended object, loitering detection, parking detection, face detection, people gathering detection, blurred detection, scene change detection, audio exception detection, human detection, vehicle detection, SMD, perimeter protection

Smart Playback Face detection / Line crossing / Area intrusion / Motion / Human / Vehicle detection

Cloud Storage Supported

Cloud Upgrade Supported

Incoming Bandwidth 160 Mbps

Outgoing Bandwidth 80 Mbps

Ethernet 1 × RJ-45 10 / 100 / 1000 Mbps self-adaptive

Network Compatibility HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, Filtre IP, DDNS, FTP, P2P, ONVIF

Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)

SATA 2 × SATA interface

Capacity Up to 14TB capacity for each HDD

PoE Interface 16 independent 10/100 Mbps PoE Ethernet interfaces

USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0

Alarm Input 4-ch

Alarm Out 1-ch

Power Supply AC 100 ~ 240 V

Power Consumption ≤ 15 W (without HDD and PoE)

Working Environment -10 °C to +55 °C / 10 % to 90 % RH

Dimension (W×D×H) 380 × 305 × 45 mm

Weight 3.6 Kg

Specifications Sheet

11-02-2026 — LGNX16164KN - 16-Channel 4K NVR with 16-Port PoE.pdf
