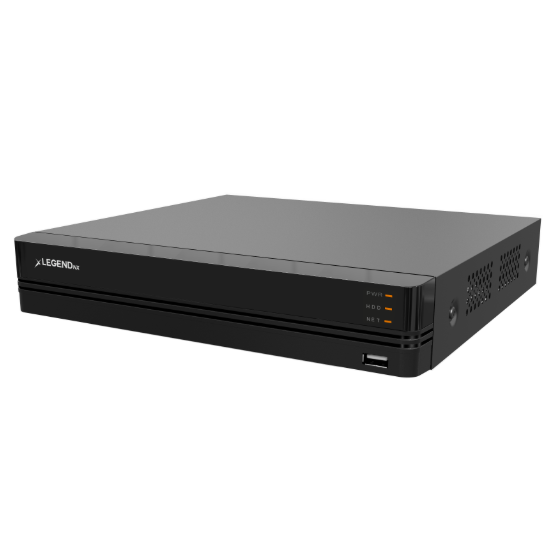

8-Channel 4K NVR with 8-Port PoE, 2TB HDD

Brand : LegendNX

UPC : 685225309949

PART # : LGNX884KLN2T

8-channel IP video input up to 8MP
Video compression: H.265+/H.265/H.264+/H.264
Incoming / outgoing bandwidth: 80 Mbps / 80 Mbps
Simultaneous HDMI and VGA outputs, HDMI up to 4K
8 independent PoE ports (total power 96 W)
Camera-based intelligent functions (human/vehicle detection, perimeter protection, face recognition, etc.)

Ordering Information		Storage Size
LGNX884KLN2T		2 TB
LGNX884KLN4T		4 TB
LGNX884KLN6T		6 TB
LGNX884KLN8T		8 TB
LGNX884KLN10T		10 TB

Raid N/A

Hot swap N/A

IP Video Input 8-Channels

Audio Input 1-Channel, RCA

HDMI 1-ch: 3840 × 2160 / 30 Hz, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

VGA 1-ch: 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

Audio Output 1-Channel, RCA

Compression H.265+/ H.265/ H.264+/ H.264

Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Bit Rate 64 Kbps to 10 Mbps

Playback Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Decoding 1-ch @ 8MP / 30 fps 2-ch @ 6MP / 30 fps 2-ch @ 5MP / 30 fps 3-ch @ 4MP / 30 fps 6-ch @ 1080P / 30 fps

Synchronous Playback 8-Channels

Playback Mode Smart / Normal / Time Division / Label / Event / Log playback

Backup Mode USB Device / Network

Smart Detection Area intrusion, line crossing, region entrance/region exiting, fast moving, object missing, unattended object, loitering detection, parking detection, face detection, people gathering detection, blurred detection, scene change detection, audio exception detection, human detection, vehicle detection, SMD, perimeter protection

Smart Playback Face detection / Line crossing / Area intrusion / Motion / Human / Vehicle detection

Cloud Storage Supported

Cloud Upgrade Supported

Incoming Bandwidth 80 Mbps

Outgoing Bandwidth 80 Mbps

Ethernet 1 × RJ-45 10 / 100 / 1000 Mbps self-adaptive

Network Compatibility HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, Filtre IP, DDNS, FTP, P2P, ONVIF

Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)

SATA 1 × SATA interface

Capacity Up to 14TB capacity for each HDD

PoE Interface 8 independent 10/100 Mbps PoE Ethernet interfaces

USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0

Alarm In N/A

Alarm Out N/A

Power Supply DC 48 V – 2.5 A

Power Consumption ≤ 15 W (without HDD and PoE)

Working Environment -10 °C to +55 °C / 10 % to 90 % RH

Dimension (W×D×H) 250 x 230 x 45 mm / 9.84" x 9.06" x 1.77"

Weight 1.7 Kg

Specifications Sheet

11-02-2026 — LGNX884KLN2T - 8-Channel 4K NVR with 8-Port PoE, 2TB HDD.pdf
