Protege WX 2 door access kit, with 4A ICT power supply and 2 TSEC STD Bluetooth enabled readers ( No enclosure)

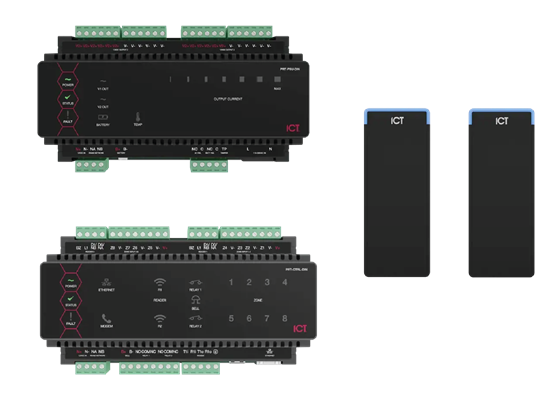

The kit includes a Protege PRT-WX-DIN 2-door controller, a 4AMP ICT PRT-PSU-DIN-4A power supply and 2 x PRX-TSEC-STD-BT-B Bluetooth readers

PRT-WX-DIN 2-door controller (x1) : The controller communicates with all system modules, stores all configuration and transaction information, processes all system communication, and reports alarms and system activity to a monitoring station or remote computer.

• 2 doors (4 readers)
• 8 multi purpose inputs
• 1 monitored bell output
• 2 Form C relay outputs
• 4 low current outputs

 4AMP ICT PRT-PSU-DIN-4A power supply (x1) : Provides the Protege system with 12VDC power, ideal for running security, access control or automation devices along with large numbers of Protege network powered modules in the same installation.

• Mains input for ready deployment reduces setup complexity
• 2 Form B relay outputs can be used as programmable outputs or as additional status outputs
• Battery backup connection for uninterrupted power delivery
• Processor controlled battery level testing and indication
• Intelligent charging algorithm monitors battery and AC supply ensuring optimum performance

PRX-TSEC-STD-BT-B Bluetooth readers ( x 2) :  Multi-technology reader supporting 13.56MHz (DESFire, MIFARE) and 125kHz cards, encrypted RS-485, OSDP or Wiegand communication, Bluetooth/NFC, configurable LED, read range up to 60mm, IP65 rated for indoor/outdoor use, optional vandal-resistant cover.

NOTE : This kit is supplied without enclosure, allowing flexibility for custom installations
