Operating Voltage
12VDC (9.5 to 14VDC)
Operating Current
254mA (peak, reading)
Card Read Range
Mifare 60mm (2.36")*; 125kHz Clamshell 40mm (1.57”)^; DESFire EV1 ISO 15mm (0.6")*
Tag Read Range
Mifare 35mm (1.18")*; 125kHz 25mm (0.98”)^; DESFire EV1 ISO 6mm (0.23")*
Wiegand Interface
Multiple format 26 or 34 Bit data 0 and data 1, card defined.
Frequency
13.56 MHz ISO/IEC 14443 Type A*; 125kHz pulse width modulated^
Multi Conductor Cable
Wiegand: 22Awg alpha 5196, 5198, 18Awg alpha 5386, 5388. Max Distance 150m (492ft); Module comms/RS485: Belden 9842 or equivalent. Max distance 900m (3000ft)
OSDP Communication
OSDP standard 2.1.5 with Secure Channel Protocol ** / ***
NFC Read Range
Up to 60mm***
NFC (Near-field communication) Electronic credential transmission technology
Android 4.4 or above, with phones which support ISO7816-4; Proprietary Secured DESFire credential; Credential is AES-256 (NIST certified AES algorithm); Reader App Version: 1.04.175 and above; Credentials can be distinguished by unique site code and card number
NFC Wireless Device
Protege Mobile 1.0.x
Environment IP Rating
IP65
Operating Temperature
UL/ULC -35° to 66°C (-31° to 151°F) : EU EN -40° to 70°C (-40° to 158°F)
Storage Temperature
-10° to 85°C (14° to 185°F)
Mean Time Between Failures (MTBF)
520,834 hours (calculated using RFD 2000 (UTE C 80-810) Standard)
Reader Dimensions (H x W x D)
117 x 46 x 18mm (4.61 x 1.81 x 0.71")
Reader with Surface Mount Box (H x W x D)
117 x 46 x 51mm (4.61 x 1.81 x 2.00")

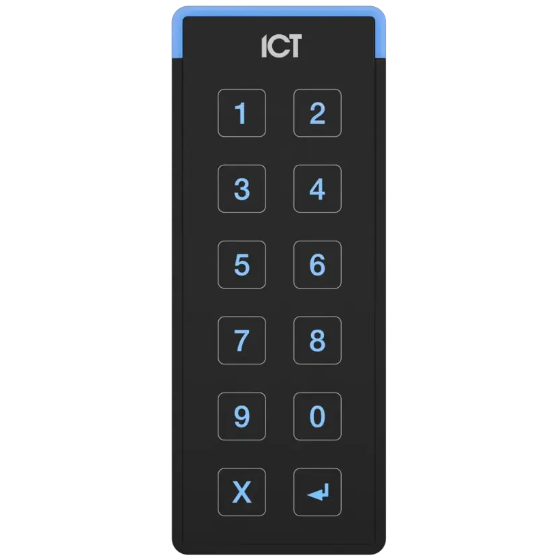

tSec Standard Reader
Net Weight: 110g (3.89oz); Gross Weight: 130g (6.7oz)
tSec Standard Reader Surface Mount Box
Net Weight: 40g (1.4oz); Gross Weight: 60g (2.1oz)
