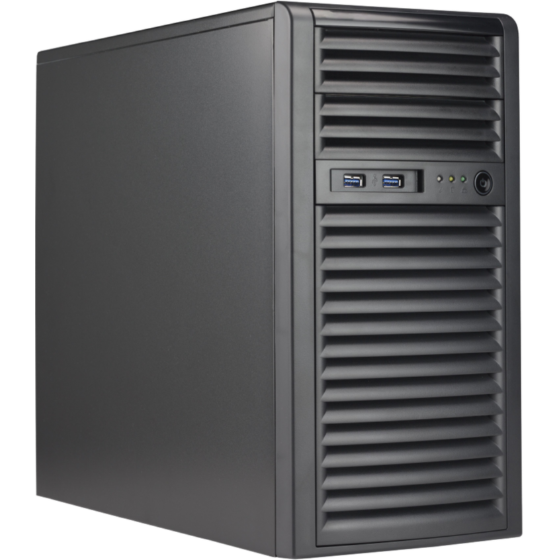

Windows Workstation For Protégé GX

Brand : INAXSYS
UPC : 685225108276
PART # : GX-WS-1T

This low-cost client workstation is designed to deliver reliable performance for everyday business and security system applications. Powered by an Intel® Core™ i3-13100 processor with speeds up to 4.50 GHz, it offers efficient multitasking and smooth operation for Windows-based environments.

The system includes 8 GB of high-speed DDR5 memory and a fast 1 TB M.2 NVMe solid-state drive for quick boot times and responsive performance, complemented by an additional 1 TB hard drive for data storage. Built on an ASUS PRO B760M-CT-CSM motherboard and housed in a robust Supermicro CSE-731I-404B chassis with a 400 W 80+ Gold power supply, this workstation is engineered for durability and long-term reliability.

Connectivity is ensured through a dedicated PCIe Gigabit Ethernet network card, making it suitable for secure and stable network deployments. The workstation comes pre-installed with Windows 11 Pro and includes a keyboard and mouse, providing a ready-to-use solution out of the box.

Backed by a 3-year warranty, this workstation offers an excellent balance of performance, reliability, and value.

Maximum IP Cameras Data rate dependent; VMS Application dependent
Video Management Software Arkiv, STORM, LEGEND or 3rd party software such as ExacqVision™, Genetec™, Milestone™, Avigilon™, and more
Server OS Windows 11 Pro 64 bit (standard)
Storage 1 TB
Drive Bays 4 x 3.5” SAS/SATA Backplane for Hot-Swappable Drives
DVD / CD-ROM Optional
Keyboard & Mouse Included
Network Controllers Dual LAN with Intel® Ethernet i225LM
LAN PCIE Network Card (Startech ST1000SPEX2L GbE, TP-Link TG-3468, or equivalent)
Graphic Card NVDIA A2000
PCI-E Add on Card Up to 2 NVMe SSDs
CPU Latest Generation Intel®Core i7, 30M Cache, up to 5.20 GHz
Core Up to 24 cores
Solid-State Drive 2 x 1TB NVMe M.2
Maximum Video Storage Rate 600 to 800 Mbps (Windows)
RAM 2 x Memory 8GB DDR-5/4800 (or faster)
Memory Type 4400/4000/3600 MT/s
DIMM Sizes 4GB, 8GB, 16GB, 32GB
Memory Voltage 1.1V
USB Ports 6 x USB 2.0 & 4 x USB 3.2 (Type-A)
Display Outputs 1 VGA port, 1 HDMI port, 1 DVI-D - Requires Processor Graphics
SATA 8 SATA3 (6Gbps) port(s)
Input Voltage 400W with Input 100 - 240Vac
Power Supply 400W ATX/PS2 Multi-output Power Supply 80PLUS Gold
Heatsink/Fan Speed Control: 4-pin PWM; Rated Voltage: 12.0 VDC; Rated Speed: 3,800 RPM
Dimensions 362 mm x 184 mm x 425 mm (H x W x D)
Weight 16 lbs
Regulatory FCC class B, UL/CB, UL/CUL
