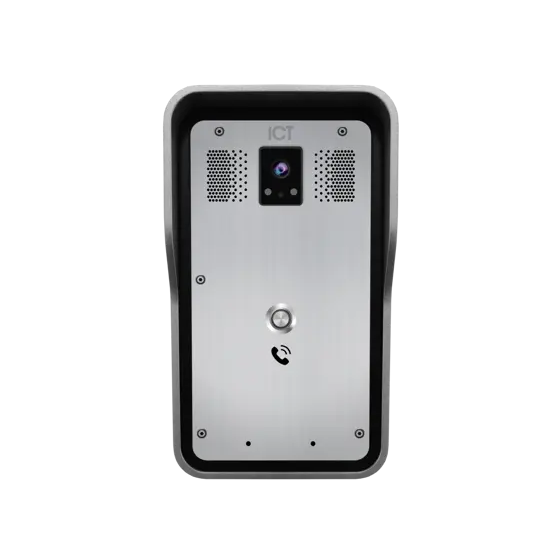

Protege Vandal Resistant VOIP Intercom with PoE and Camera

Brand : ICT
UPC : 685225106647
PART # : PRT-IPIC-POE-C

The Protege Vandal Resistant VoIP Intercom is built for extreme durability in harsh environments. With VoIP connectivity, it enables two-way audio, live video, and remote access control from any VoIP-enabled device, including smartphones.

Operating Voltage 12VDC (9 -16VDC)
Operating Current 1 A
Power over Ethernet IEEE 802.3af Class 3
Communication protocol SIP 2.0 (RFC-3261)
Protocols RTP/SRTP
Decoding G.722 G.711U G.711A G.723.1 G.726-32 G.729AB Codecs
Audio Amplifier 3W
Volume Control Adjustable
Full duplex speakerphone Support (AEC)
Recording output One (3.5mm terminal block)
Short circuit input One (3.5mm terminal block)
Short circuit output One Form C relay (3.5mm terminal block) 24V DC 1A
WAN port 10/100BASE-TX s Auto-MDIX, RJ-45
Cables CAT5 or better
Camera Resolution 960p (1280x960 pixels)
Camera Viewing Angle 115° horizontal / 87° vertical
Frame Rate 30 fps
Microphone Omnidirectional
Speaker TY 4 ohm 3W
Environmental IP Rating IP65
Working temperature -40° to 70° Celsius (-40° to 158° Fahrenheit)
Storage temperature -40° to 70° Celsius (-40° to 158° Fahrenheit)
Working humidity 10% to 95%
Wall-Mounted 223 x 130 x 74mm (8.77 x 5.11 x 2.91")
Net Weight 1400g (49.4oz)
Gross Weight 1640g (57.8oz)

No documentation for this product yet.
