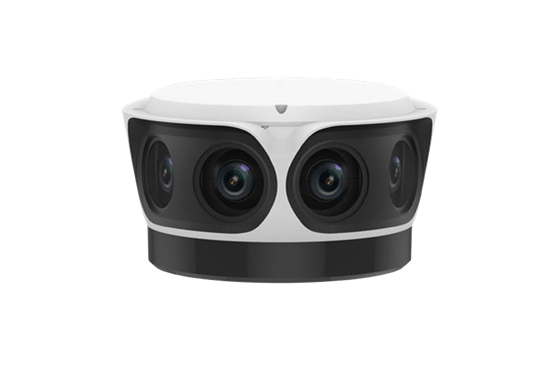

16MP 180° OmniView Network Camera with CHROMAVIEW

Brand : LEGEND

UPC : 685225103578

PART # : INLGBO16180WF

The INLGBO16180IRWF camera offers exceptional imaging capabilities with its 16MP 1/1.8’’ CMOS sensor, ensuring high-quality visuals. Its versatile features include 2 alarm inputs and 1 output, along with 1 audio input and 1 output for comprehensive surveillance needs. With advanced encoding options in H.265+ and H.264, this camera optimizes storage efficiency. Equipped with a built-in fan for heat dissipation and mist elimination, Smart IR technology providing a range of up to 50m, and support for Micro SD Cards up to 256GB, the camera ensures reliable performance and storage flexibility. Additionally, its Stitched Image capability enhances panoramic views for comprehensive monitoring.

Image Sensor 1/1.8” progressive scan, 4.0 megapixel, CMOS

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, shutter time: 1 s ~ 1/100,000 s

Minimum Illumination Colour: 0.001 lux (F1.6,AGC ON) 0 lux with IR

S/N Ratio More than 56dB

IR Distance Up to 50m (164ft) IR range

Wavelength 850nm

Wide Dynamic Range DWDR

IR On/Off Control Auto/Manual

Backlight Compensation Supported

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Day/Night IR-cut filter with auto switch (ICR)

Noise Reduction 2D/3D DNR

HLC Supported

Defog Digital Defog

Privacy Masking Up to 8 areas(8 blacks/8 mosaics)

ROI Up to 8 areas

OSD Up to 8 OSDs

Flip Normal/Flip Vertical/Flip Horizontal/180°

Lens Type 4 × 2.8mm lens

Iris F1.6

Viewing Angle H: 180°; V: 90°; O: 221.4°

DORI Distance - 2.8mm Lens Detect: 63.0(206.7ft); Observe: 25.2(82.7ft); Recognize: 12.6(41.3ft); Identify: 6.3(20.7ft)

Compression H.265+ / H.265 / H.264 / MJPEG

Frame Rate Main Stream: 4800 × 2688, Max. 30 fps / Sub Stream: 2688 × 1520, Max. 30 fps / Third Stream: 1280 × 720, Max. 30 fps

Bit Rate 128 Kbps ~ 16 Mbps

Alarm I/O 2/1

H.264 code profile Baseline profile, Main profile, High profile

Network 10M/100M/1000M Base-TX Ethernet

Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP

Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Video Management Software LEGEND VMS, Arkiv

Compatibility ONVIF (Profile S, Profile G, Profile T), API,SDK

Suppression Supported

Two-way Audio Supported

Edge Storage Micro SD slot, up to 256 GB

Network Storage ANR, NAS(NFS)

Audio I/O Input: impedance 35k; amplitude 2V [p-p] / Output: impedance 600; amplitude 2V [p-p]

Audio Compression G.711U, G.711A

Power Supply AC24V±25%/DC24V±25%, PoE(IEEE 802.3at)

Power Consumption Less than 34W

Sampling Rate 8KHZ

Weight 2.271kg(5.01lb)

Dimensions 258.8mmx211.0mmx115.0mm (10.2”×8.3”×4.5”)

General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Certifications (EMC) CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)

Certifications (Safety) CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)

Certifications (Environment) CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Power Consumption Less than 34W

Working Environment -40° C to +70° (-40°F ~ 158°F) / Less than 95% RH (non-condensing)

Ingress Protection IP67

Specifications Sheet

30-10-2025 — INLGBO16180WF - EN.pdf
