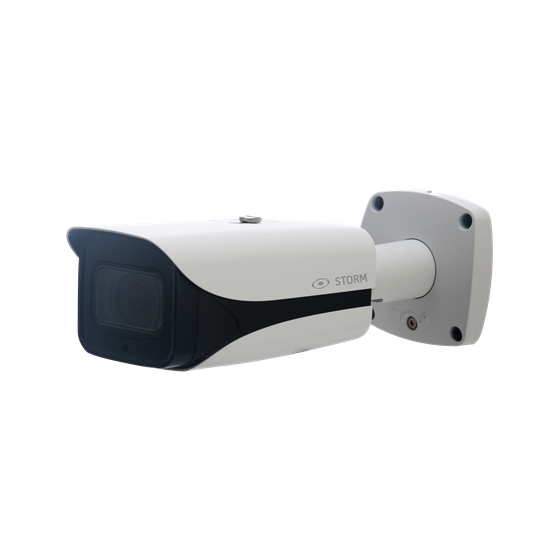

2.1MP WDR 12X IR Bullet Network Camera

Brand : STORM

UPC : 685225603504

PART # : INSBO2IRW12X

The 2.1MP WDR 12X Bullet Camera with SD slot offers superior image quality and advanced surveillance capabilities. Featuring a 2MP, 1/2.8” progressive scan STARVIS™ CMOS sensor, this camera delivers crisp 1920 × 1080 resolution at 50/60 fps. The H.265 codec ensures high compression rates and ultra-low bit rates, optimizing storage and bandwidth efficiency.

Equipped with built-in IR LED, the camera provides a remarkable maximum IR distance of 200 meters, ensuring clear visibility in low-light conditions. It also includes advanced imaging technologies such as Wide Dynamic Range (WDR) at 120dB, Day/Night (ICR), 3D Noise Reduction (3DNR), Auto White Balance (AWB), Auto Gain Control (AGC), and Backlight Compensation (BLC).

Designed for robust security applications, this bullet camera combines high-quality imaging, efficient compression, and advanced features, making it ideal for various surveillance needs.

Image Sensor 1/2.8” 2 Megapixels progressive scan CMOS

Effective Pixels 1920(H) x 1080(V)

RAM/ROM 256MB/32MB

Scanning System Progressive

Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination 0.006Lux/F1.4 ( Color,1/3s,30IRE); 0.05Lux/F1.4 ( Color,1/30s,30IRE); 0Lux/F1.4 (IR on)

S/N Ratio More than 50dB

IR Distance Distance up to 200m (656ft)

IR LEDs 4

Day/Night Auto(ICR) / Color / B/W

Backlight Compensation BLC / HLC / WDR(120dB)

White Balance Auto / Natural / Street Lamp / Outdoor / Manual

Gain Control Auto/Manual

Noise Reduction 3D DNR

Digital Zoom 16x

Privacy Masking Off / On (4 Area, Rectangle)

Lens Type Motorized/ Auto Iris(HALL)

Mount Type Board-in

Focal Length 5.3mm~64mm

Max. Aperture F1.4

Viewing Angle H: 59°~5°, V:34°~3°

Optical Zoom 4x

Focus Control Motorized

Pan/Tilt/Rotation Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

DORI Distance Wide (5.3mm): Detect 73m (236ft); Observe 29m (95ft); Recognize 14m (46ft); Identify 7m (23ft) / Telemetry (64mm): Detect 882m (2893ft); Observe 353m (1158ft); Recognize 176m (577ft); Identify 88m (288ft)

Compression H.265+/ H.265/ H.264+/ H.264

Resolution 1080P(1920x1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576 / 704×480) / VGA(640×480) / CIF(352×288 / 352×240)

Frame Rate Main Stream: 1080P(1~50/60fps); Sub Stream: D1(1~50/60fps); Third Stream: 1080P(1~25/30fps)

Bit Rate H.264: 24~9472Kbps; H.265: 14~5632Kbps

IVS Tripwire, Intrusion, Object Abandoned/Missing

Adv. Intelligent Functions Face Detection

Ethernet RJ-45 (10/100Base-T)

Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Compatibility ONVIF, PSIA, CGI

Maximum User Access 10 Users/20 Users

Storage Mirco SD card 128GB

Smart Phone iOS, Android

Video Interface 1 Port (For adjustment only)

Audio Interface 1/1 channel In/Out

RS485 N/A

Alarm 2 channel In: 5mA 5VDC; 1 channel Out: 300mA 12VDC

Power Supply DC12V, PoE (802.3af)(Class 0)

Power Consumption <12.95W

Working Environment -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection IP67

Vandal Protection IK10

Dimensions 273.2mm × 95.0mm × 95.0mm (10.76” × 3.74” × 3.74”)

INSX152 - Mini Pole Mount Bracket

PART #: INSX152 View more

INSX121 - Waterproof Junction Box

PART #: INSX121 View more

Specifications Sheet

18-08-2021 — INSBO2IRW12X 2MP WDR 12X Bullet Camera 2021.pdf
