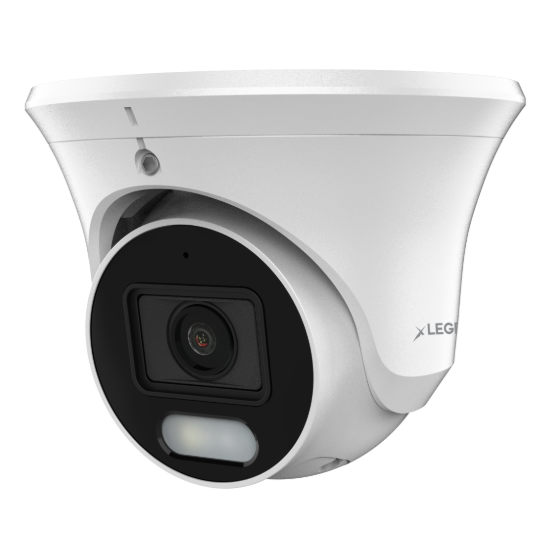

4.1 MP CHROMAVIEW LITE Fixed Turret Network Camera

Brand : LegendNX

UPC : 685225310006

PART # : LGNXTO4CVLWF

High-definition imaging with an 4.1 MP resolution
Classification of human and vehicle targets through intelligent analysis
CHROMAVIEW LITE: 24/7 full-color imaging
IR illumination up to 30 m
IP67 protection rating against water and dust
Built-in microphone
Black version: LGNXTO4CVLWFB

Image Sensor 1/2.7” Progressive Scan CMOS

Minimum Illumination 0.004 lux at F1.0

Illumination Distance IR: up to 30 m

Smart IR Supported

Strobe Light N/A

Pan / Tilt / Rotation 0° to 360° / 0° to 75° / 0° to 360°

Focal Length 2.8 mm

Aperture F2.0

Field of View HORIZONTAL: 101° / VERTICAL: 54° / DIAGONAL: 120°

Mount M12

Video Compression H.264 / H.264+ / H.265 / H.265+ / MJPEG

H.265 Codec Profile Main

H.264 Codec Profile Base / Main / High

Video Bit Rate 11 Kbps to 6 Mbps

Multiple Streams Triple streams

Audio Compression G.711A, G.711U

Audio Bit Rate 64 Kbps

Maximum Resolution 4MP (2688 × 1520)

Main Stream 50Hz: 25 fps 4MP (2688 × 1520) 25 fps 3MP (2304 × 1296) 25 fps 1080P (1920 × 1080) 25 fps 1.3MP (1280 × 960) 25 fps 720P (1280 × 720) // 60Hz: 30 fps 4MP (2688 × 1520) 30 fps 3MP (2304 × 1296) 30 fps 1080P (1920 × 1080) 30 fps 1.3MP (1280 × 960) 30 fps 720P (1280 × 720)

Sub Stream 25 fps D1 (704 × 576) 25 fps VGA (640 × 480) 25 fps CIF (352 × 288) // 60Hz: 30 fps D1 (704 × 480) 30 fps VGA (640 × 480) 30 fps CIF (352 × 240)

Third Stream 50Hz: 25 fps CIF (352 × 288) // 60Hz: 30 fps CIF (352 × 240)

Parameters Brightness / Contrast / Saturation / Hue / Sharpness

Shutter Auto / Manual, 1/3 to 1/100000 s

Day / Night 24-7 Color

WDR 120 dB

Noise Reduction 2D / 3D DNR

Back Light Compensation (BLC) Supported

High Light Compensation (HLC) Supported

Region of Interest (ROI) Supported

Rotation Supported

Basic Events Motion detection, video tampering

Smart Events Smart motion detection, line crossing, area intrusion, region entrance/exiting with human/vehicle filtering

Face Detection N/A

Storage NAS (NFS, SMB/CIFS)

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P

Compatibility ONVIF (Profile S, G, T), SDK

Security IP address filtering, HTTP/HTTPS basic and digest authentication, TLS 1.1/1.2, WSSE

Users 10

Browsers IE10, IE11 ; Chrome 57+ ; Firefox 52+ ; Safari

Mobile iOS, Android

Red/Blue Light N/A

Sound Warning N/A

Network 1 × RJ45 10/100 Mbps

On-board Storage Up to 256 GB

Microphone Supported

Speaker N/A

Audio Input / Output N/A

Alarm Input / Output N/A

Reset Button Supported

Operating Conditions -40 °C to 60 °C

Humidity ≤ 95% non-condensing

Power Supply DC12V ± 25%

PoE 802.3af

Power Consumption Maximum 5.4 W

Protection IP67, 2kV

Material Metal

Dimensions Φ103.5 × 82.4 mm

Weight 450 g

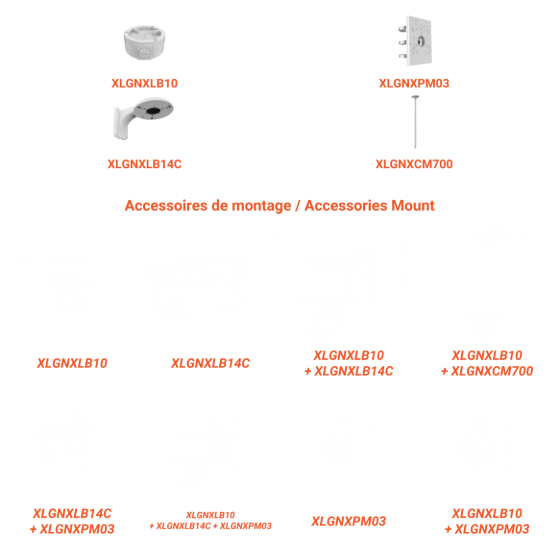

XLGNXLB10 - Junction box

PART #: XLGNXLB10 View more

XLGNXPM03 - Pole Mount

PART #: XLGNXPM03 View more

XLGNXLB14C - Wall Mount

PART #: XLGNXLB14C View more

XLGNXCM700 - Pendant Mount Bracket

PART #: XLGNXCM700 View more

Specifications Sheet

03-02-2026 — LGNXTO4CVLWF - LGNXTO4CVLWFB - 4.1 MP CHROMAVIEW LITE Fixed Turret Network Camera.pdf
