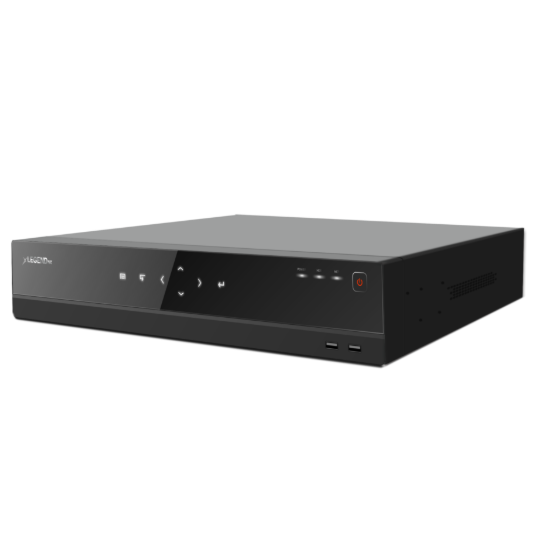

32-Channel 4K NVR

Brand : LegendNX

UPC : 685225308829

PART # : LGNX324KN

32-channel IP video input, up to 12 MP
Video compression: H.265+/H.265/H.264+/H.264
Incoming / outgoing bandwidth: 256 Mbps / 256 Mbps
Dual asynchronous HDMI outputs (HDMI up to 4K) + simultaneous VGA output
Up to 4 SATA interfaces (up to 18TB per HDD)
Camera-based intelligent functions (human/vehicle detection, perimeter protection, face recognition, etc.)

Ordering Informations

LGNX324KN4T - 4 TB
LGNX324KN8T- 8 TB
LGNX324KN10T - 10 TB
LGNX324KN12T - 12 TB
LGNX324KN16T - 16 TB
LGNX324KN20T - 20 TB
LGNX324KN24T - 24 TB
LGNX324KN28T - 28 TB
LGNX324KN32T - 32 TB
LGNX324KN36T - 36 TB
LGNX324KN40T - 40 TB

Raid N/A

Hot swap N/A

IP Video Input 32-ch

Audio Input 1-ch, RCA

Video Output Mode 1 × VGA, 2 × HDMI

HDMI Resolution HDMI 1: Up to 3840 × 2160 / HDMI 2: Up to 1920 × 1080

VGA Resolution Up to 1920 × 1080

Audio Output 2-ch, RCA

Compression H.265+/ H.265/ H.264+/ H.264

Playback Resolution 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 / CIF / QCIF

Decoding 2-ch @ 12MP / 20 fps 4-ch @ 8MP / 30 fps 6-ch @ 5MP / 30 fps 8-ch @ 4MP / 30 fps 16-ch @ 1080P / 30 fps

Synchronous Playback 16-ch

Playback Mode Smart Playback / Normal / Time Division / Label / Event / Picture

Backup Mode USB Device / Network / eSATA

Smart Detection Area intrusion, line crossing, region entrance/region exiting, fast moving, object missing, unattended object, loitering detection, parking detection, face detection, people gathering detection, blurred detection, scene change detection, audio exception detection, human detection, vehicle detection, SMD, perimeter protection

Smart Playback Face detection / Line crossing / Area intrusion / Motion / Human / Vehicle detection

Cloud Storage Supported

Cloud Upgrade Supported

Incoming Bandwidth 256 Mbps

Outgoing Bandwidth 256 Mbps

Ethernet 2 × RJ-45 10 / 100 / 1000 Mbps self-adaptive

Network Compatibility HTTPs, HTTP, TCP/IP, IPv4, UPnP, RTSP, UDP, SMTP, SNMP, NTP, DHCP, DNS, Filtre IP, DDNS, FTP, P2P, ONVIF

Smart Phone IOS (iPhone, iPad), Android (Phone, Pad)

SATA 4 × SATA interface

Capacity Up to 18TB capacity for each HDD

USB Interface Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0

eSATA 1 x eSATA

RS-485 2

Alarm Input 16-ch

Alarm Out 4-ch

Power Supply AC 100 ~ 240 V

Power Consumption ≤ 20 W (without HDD and PoE)

Working Environment -10 °C to +55 °C / 10 % to 90 % RH

Dimension (W×D×H) 440 × 448 × 70 mm

Weight 6.1 kg

Specifications Sheet

24-02-2026 — LGNX324KN - 32 CHANNELS 4K NVR (2).pdf
